Automatic glass drilling machine

​

Glass Thickness: 3mm-30mm
Drilling Hole Dimension: φ4mm-48mm
Maximum stroke of drill head: 40mm
Depth of single side drilling: 900mm
Total Power: 2.5KW
Max. size of processing glass:   2600*1800mm
Overall Dimension (L*W*H)   2200*1800*950
Net Weight :1000KG

Semi auto glass drilling machine

​

Drilling diameter : Φ4mm-220mm
Glass processing size : 3-20mm
Max. size of processing glass:     2600*1800mm
Working table height: 950mm
Total Power : 2.5KW
Max. size of processing glass:  2600*1800mm
Overall Dimension (L*W*H)    2200*1800*1700mm
Net Weight: 950KG

​

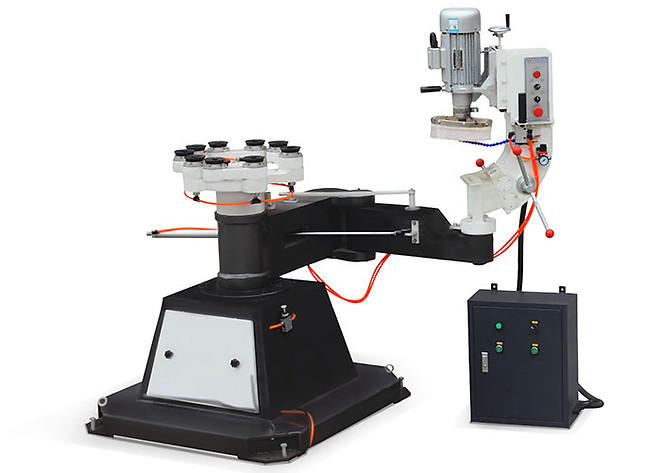

Glass shape edging machine for irregular glass

​

Glass diagonal size(mm): 100-2000

Bevel angle(degree): 0-30

Max.bevel width(mm): 40

Min.internal hole(mm): 100

Max.glass thickness(mm): 30

Compressed air consumption(L/min): <1.5

Pressure(kg/cm2): 8

Power (KW): 2.6

Outer dimension(m): 1.2x1.2x1.6

Weight (kg) :800

​

​
